PD Clevis Plate, Hot Dip Galvanized Carbon Steel Parallel Hanging Plate for Power Line Fittings

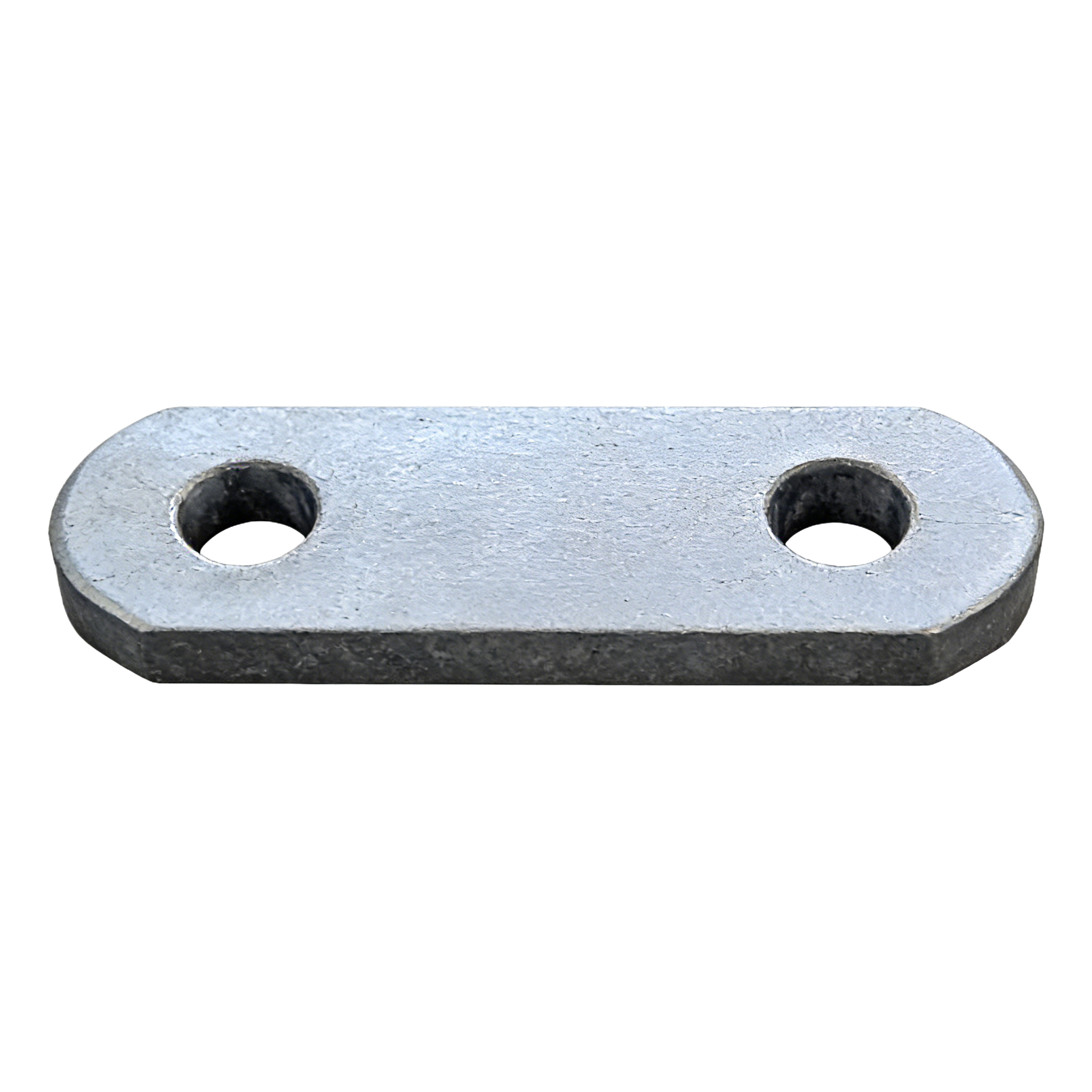

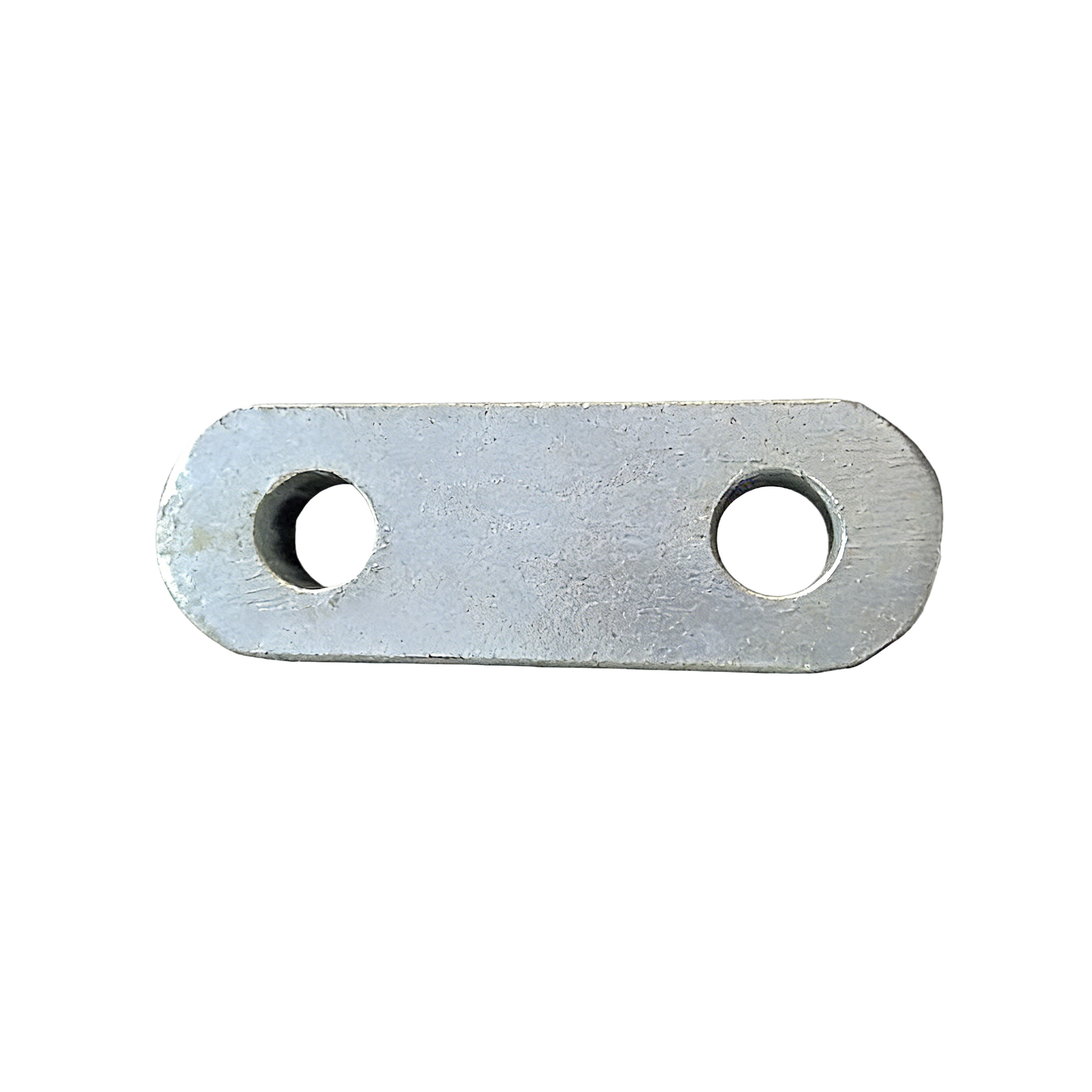

PD Clevis Plate, Hot Dip Galvanized Carbon Steel Parallel Hanging Plate for Overhead Power Line Insulator String Connection

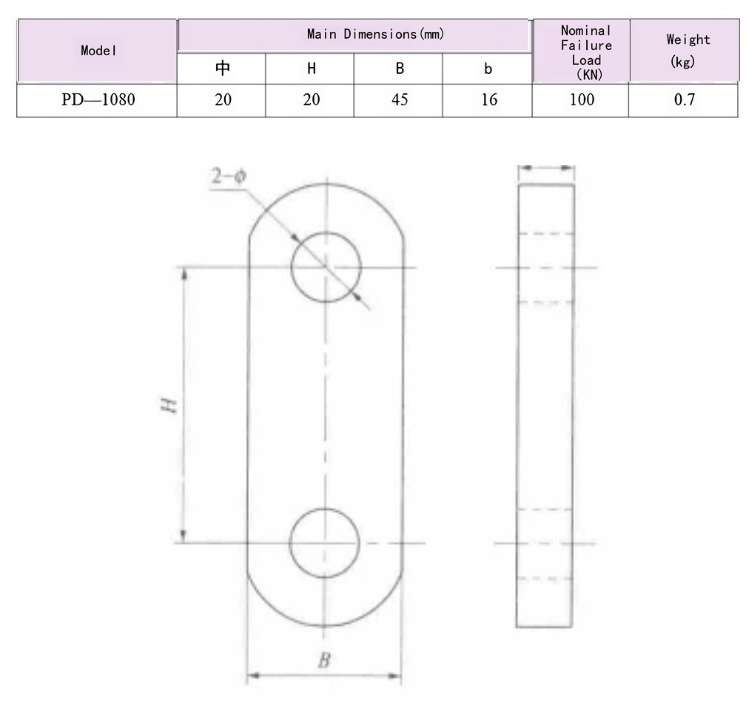

PD Type Clevis Plate Technical Drawing, Power Line Hardware Fittings for Overhead Transmission Lines, Xushenglongtai

PD Clevis Plate | Hot Dip Galvanized Parallel Hanging Plate for Power Line Fittings

PD Clevis Plate (Parallel Hanging Plate) is a hot-dip galvanized carbon steel power line fitting for insulator string and tower hardware connection. Available in PD-7/10/12/16/21 models.

描述
其他信息

PD Type Clevis Plate / Parallel Hanging Plate

PD type clevis plate is a key connecting fitting for overhead power transmission lines, made of high-quality carbon steel with hot-dip galvanized finish. It is widely used to connect insulator strings, clamps and tower hardware, adjusting assembly length without changing connection direction.

Key Features

High-strength forged carbon steel, stable mechanical load, no deformation or fracture
Hot-dip galvanized treatment for excellent corrosion resistance and long service life
Parallel two-hole design for quick and easy installation
Complete specifications: PD-7 / PD-10 / PD-12 / PD-16 / PD-21 available

Technical Data

Model: PD-7 / PD-10 / PD-12 / PD-16 / PD-21
Material: High-quality carbon steel
Surface Treatment: Hot-dip galvanized
Rated Breaking Load: 7kN~21kN (depends on model)
Application: Power line insulator string, clamp and tower connection

Customization and bulk orders are available. Contact us for quotation!

Material	Carbon Steel
Surface Treatment	Hot-Dip Galvanized
Application	Overhead Power Transmission Line, Insulator String Connection, Tower Hardware
